PRODUCT DESCRIPTION

Gabion cages are also known as stone cage nets, lead wire stone cage nets, and dam wire meshes.

The gabion cage is assembled from various mesh sizes of gabion meshes in accordance with ASTM A975-97 specifications. Cells, in order to strengthen the strength of the gabion cage structure, the edges of all face mesh panels are made of steel wire with a larger diameter. Control and guide rivers and floods, flood discharge dams and diversion dams, rock collapse protection, prevention of water and soil erosion, bridge protection, solid soil structure, coastal defense engineering, port engineering, retaining walls, road protection.

The combination of gabion cages:

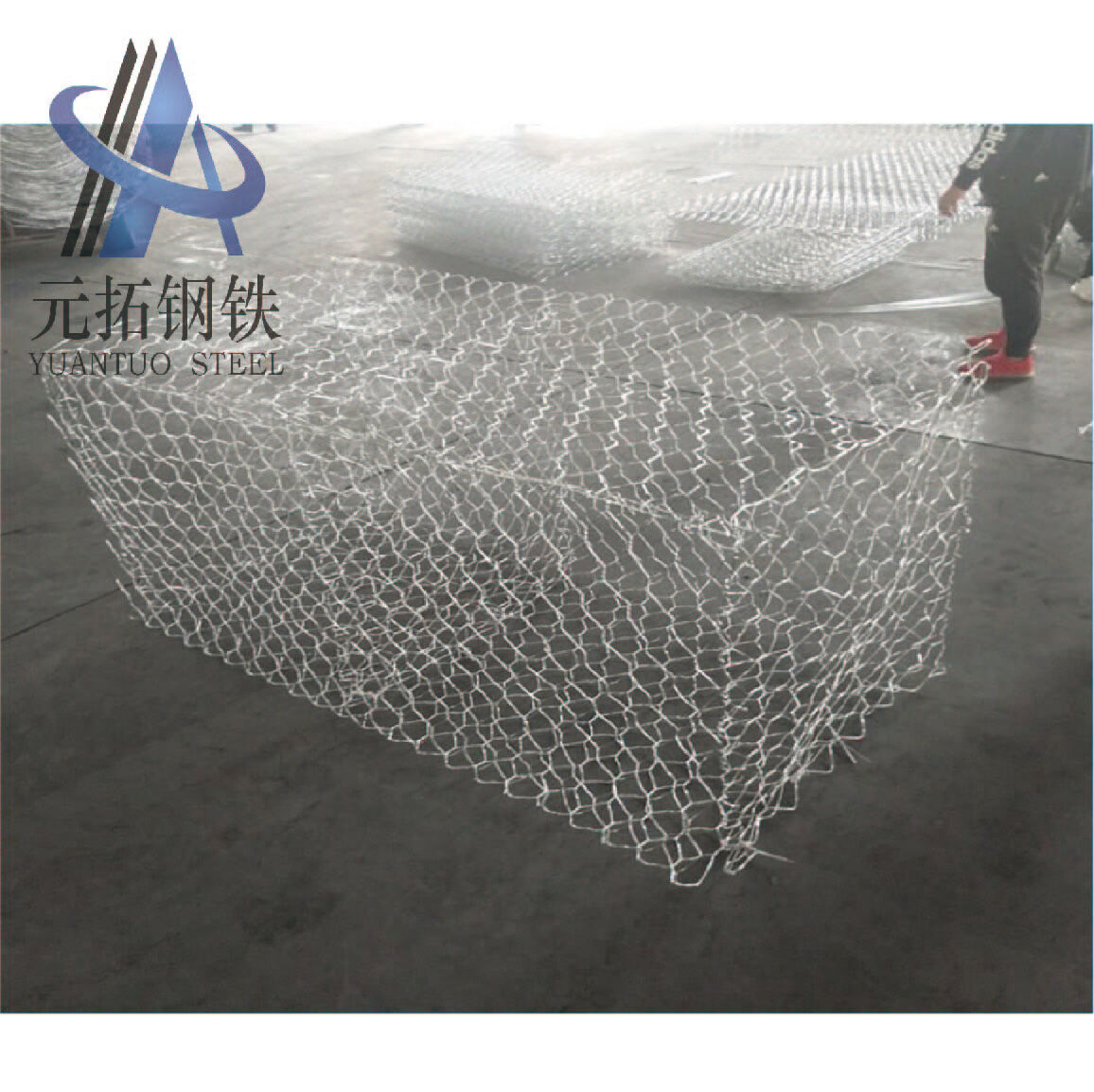

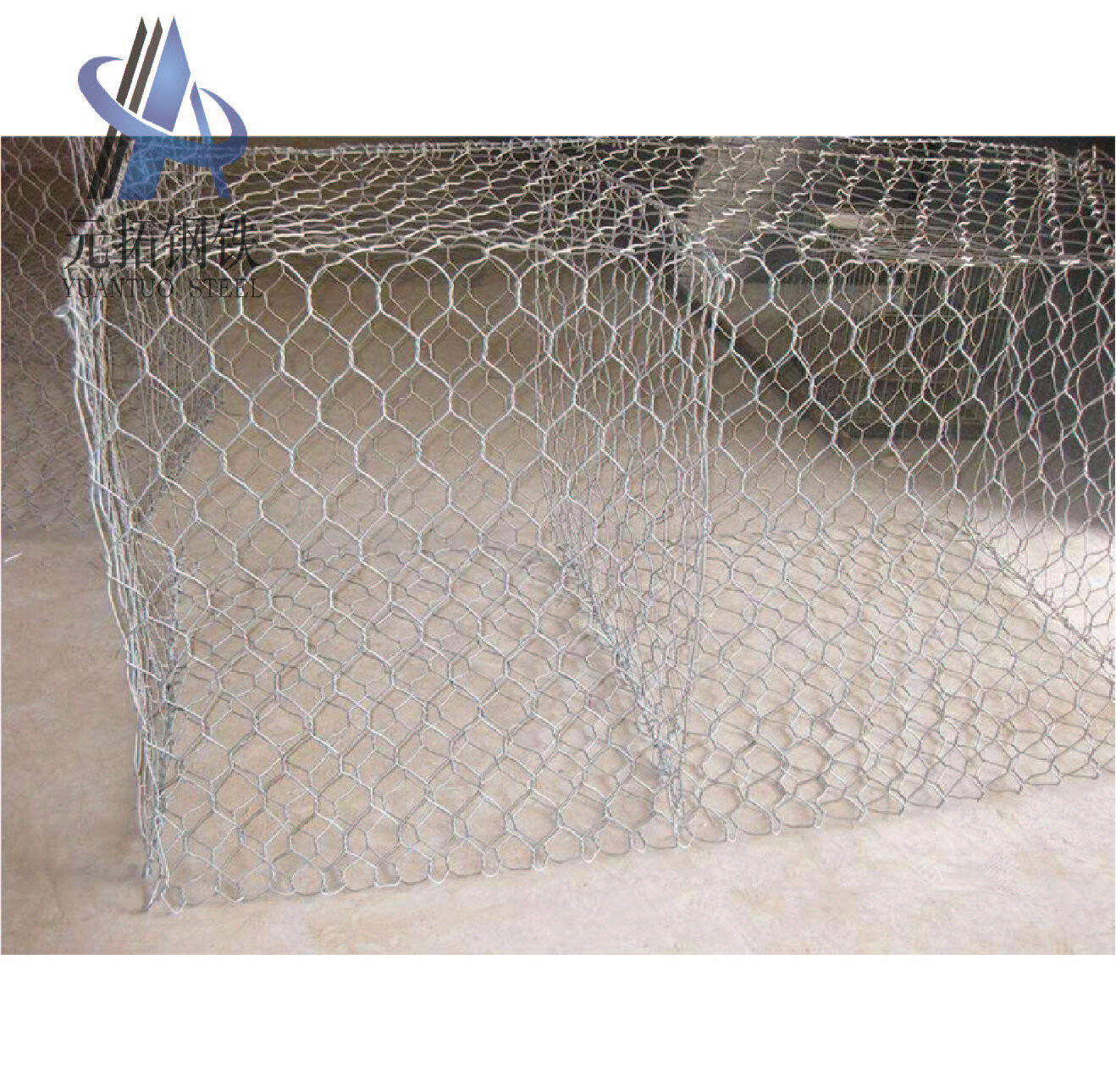

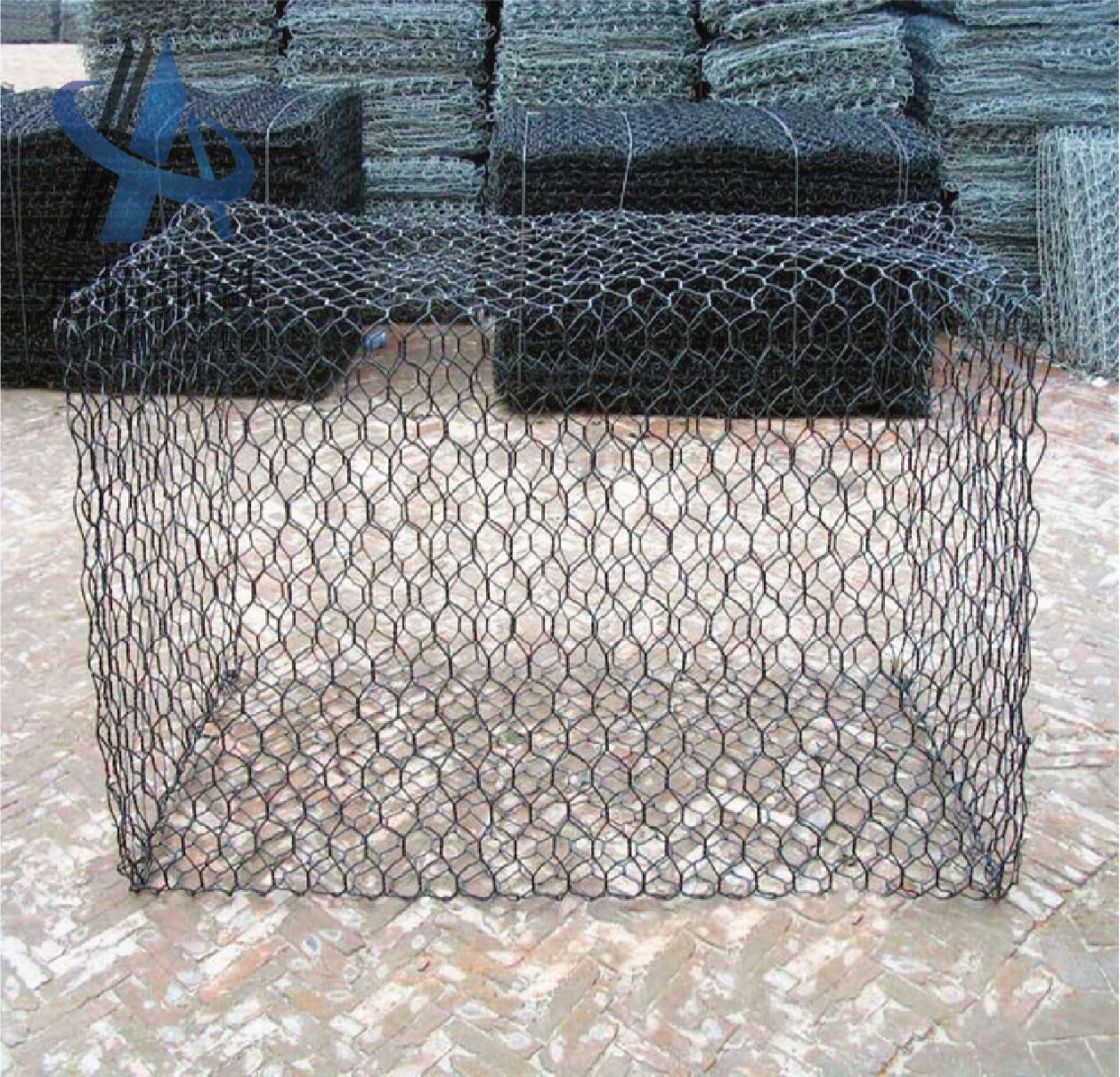

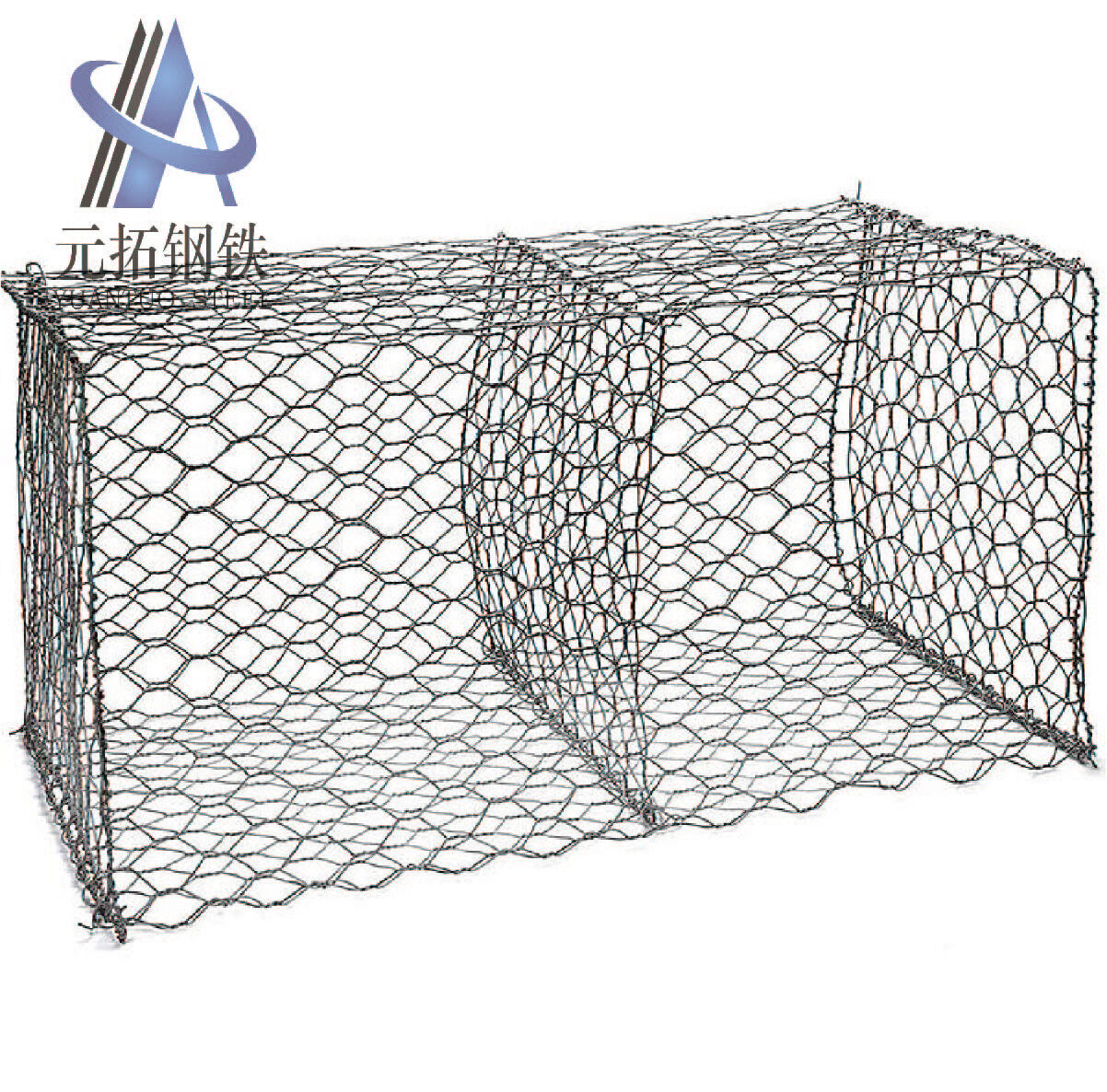

1. The cage is produced by one-time molding. Except for the cover plate, the side plate, the end plate and the bottom plate are inseparable. Length/width tolerance (±5%) height tolerance (±5%), the interior is separated into independent units by partitions every 1 meter.

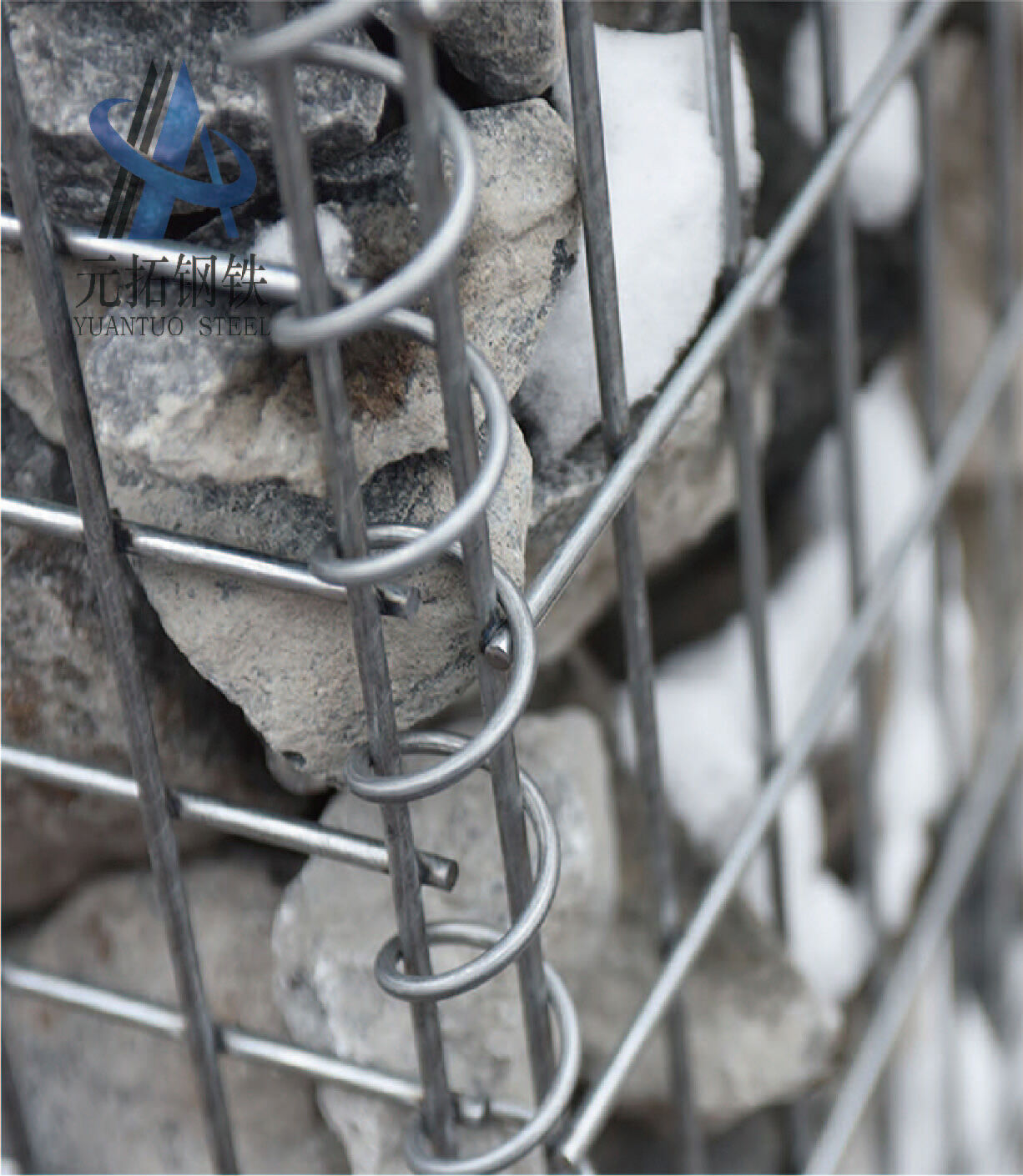

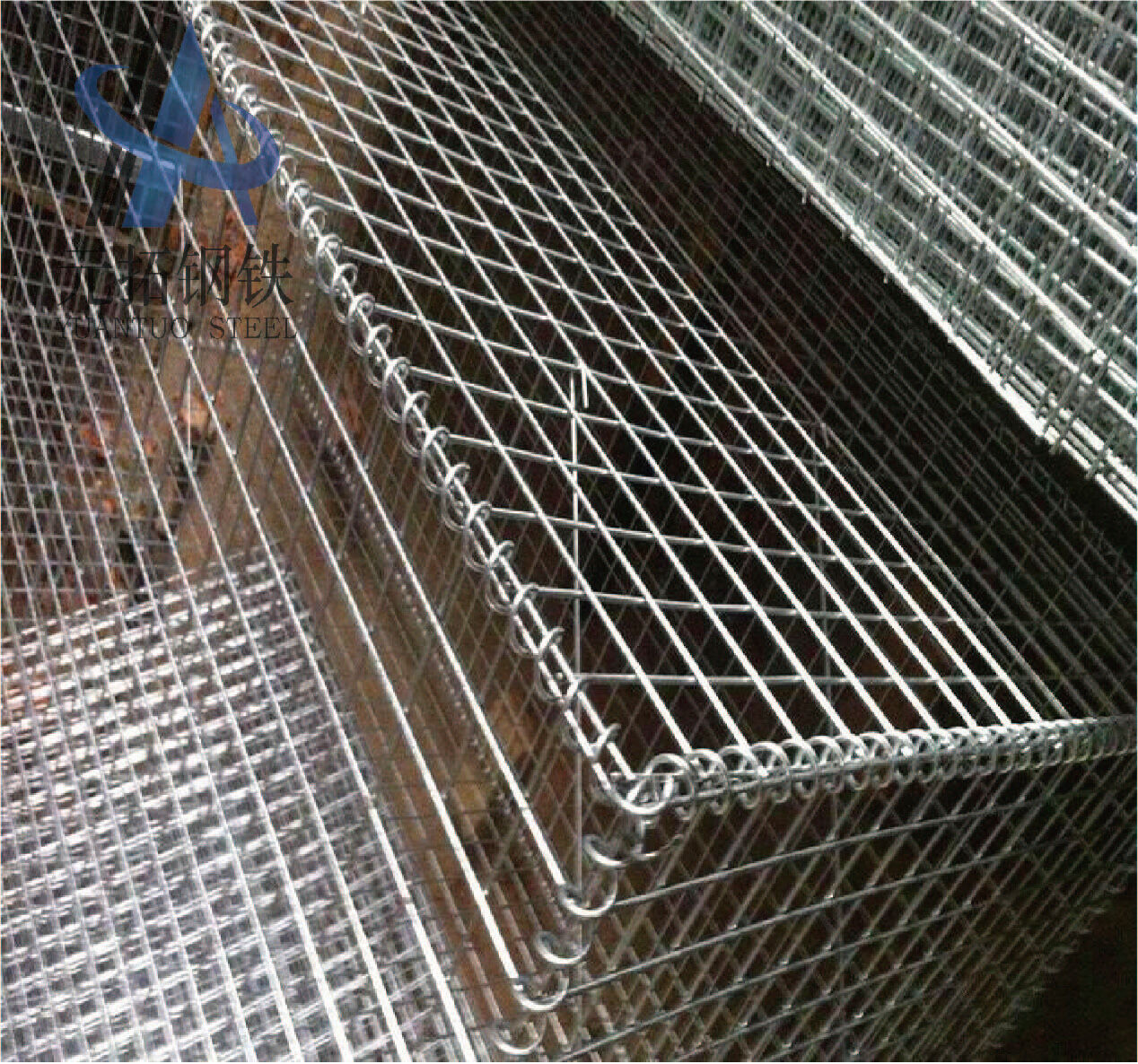

2. The cage adopts the assembly method. The cover plate, side plate, end plate and bottom plate are separately produced and assembled into the cage. Each part is wound and bound with spiral steel wire.

Gabion Cage - Installation

1. Arrange the cages in place with staggered seams to avoid longitudinal through seams.

2. Stand up the four sides of the cage, and lock the adjacent edges with the binding thread. When binding, wrap the binding thread around the two overlapping frame lines (when sewing the edges) or the double kink between the frame line and the cage ( When sewing the grille), screw it tightly to avoid damage by heavy galvanizing, and the thread pitch is not more than 50 mm.

3. When installing the gabion cage on the completed bottom net, use the binding wire to fix it on the bottom gabion cage along the lower frame of the newly installed cage, and the adjacent cages on the same layer should also use the binding wire to each other. Fasten, so that the gabion cages are integrated.

4. In the construction of the same horizontal layer of a unit project, the pebbles should be filled after all the gabion nets are in place. The height difference of rock filling should not be greater than 35 cm;

5. Before the cage is installed, the bank slope and the ground should be properly trimmed, and the original shape of the bank slope should be maintained as much as possible, but there should be no obvious uplift and depression.

6. The filled pebbles are selected on the floodplain, and their compressive strength should meet the design requirements. The particle size of the pebbles should be between 8 and 20 cm, and the size should be reasonably matched to meet the design requirements of the porosity and ensure the straight line of the gabion net. shape.

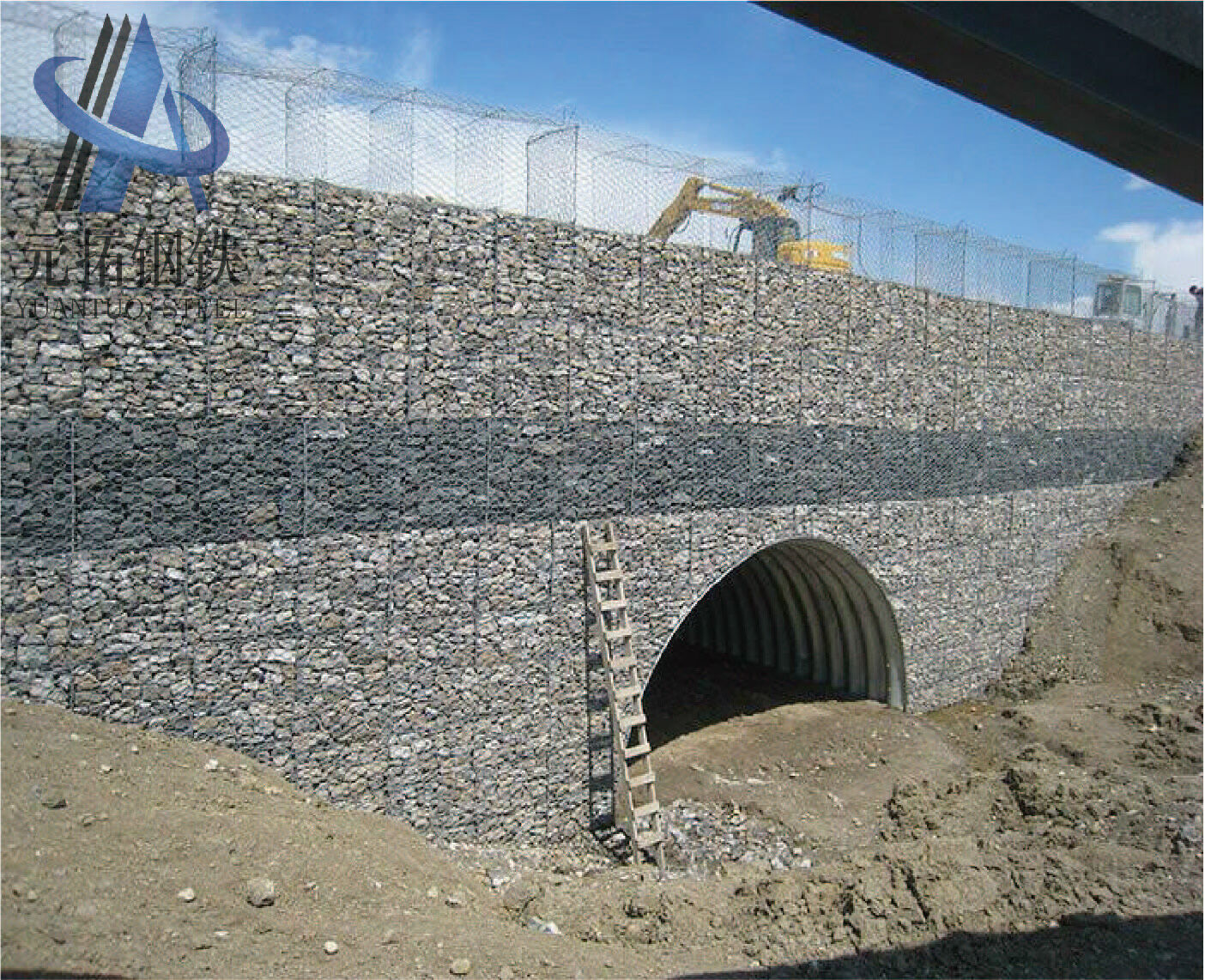

Application of gabion cage:

This product is commonly used in highways, railway guardrails, slope protection, slope greening, mountain surface, hanging net shotcrete, well protection, construction, breeding nets, zoo fences, grassland fences, hillside cages, flood-resistant cages, Dike fence, control and guide the river flow, flood discharge dam and diversion channel, rock fall protection, bridge protection, soil solid structure, retaining wall, prevention of soil erosion, coastal defense engineering, port engineering, etc.

PRODUCT SERVICE

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
