PRODUCT DESCRIPTION

Galvan gabion mesh is also known as zinc-aluminum alloy gabion mesh, zinc-aluminum alloy gabion mesh, zinc-aluminum alloy steel wire mesh, and zinc-aluminum alloy barbed wire mesh.

Galvan gabion mesh is woven with new anti-corrosion materials. Galvan gabion mesh has high anti-corrosion performance, and the anti-corrosion performance of its products is about 2-3 times that of ordinary gabion mesh. No matter in harsh environments such as outdoor, humid environment, or marine climate, the corrosion resistance of this Galvan is superior to ordinary galvanized and electro-galvanized. The ductility and deformability of the Galvan gabion mesh is extremely strong, even beyond the steel base it protects. It can withstand the test of winding and bending under strong deformation process conditions without worrying about cracking and falling off of the zinc layer.

Galvan gabion mesh size: 6×8cm 8×10cm 10×12cm 12×15cm 16×18cm

Galvan Gabion mesh wire diameter: 2.0-4.0mm (Note: in order to strengthen the stability of the mesh itself, the edge wire is 1mm larger than the mesh wire)

There are four kinds of materials for the Galvan gabion mesh:

(1) Galvanized steel wire: high-quality low-carbon steel wire, the diameter of the steel wire is 2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot-dip galvanizing, and the thickness of the galvanized protective layer is based on customer requirements Production, the maximum amount of galvanized can reach 300g/m2.

(2) Zinc-5% aluminum-mixed rare earth alloy steel wire: (also called Galvan) steel wire, which is an emerging material in the world in recent years. Its corrosion resistance is more than 3 times that of traditional pure galvanized steel. The diameter of the steel wire can reach 2.0MM-4.0MM, and the tensile strength of the steel wire is not less than 380Mpa.

(3) Galvanized steel wire coated with plastic: high-quality low-carbon steel wire, covered with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into various specifications of Galvan gabion mesh. This layer of protection will greatly increase the protection in high pollution environments, and through the choice of different colors, it can be integrated with the surrounding environment.

(4) Plastic coating of zinc-5% aluminum-mixed rare earth alloy steel wire: wrap a layer of PVC or PE protective layer on the surface of zinc-5% aluminum-mixed rare earth alloy steel wire, and then weave into various specifications of Galvangebine network. This layer of protection will greatly increase the protection in high pollution environments, and through the choice of different colors, it can be integrated with the surrounding environment.

Engineering structures made of Galvan gabion mesh have the following properties:

1. Flexible structure: anti-rainstorm, water scour, no structural joints, adaptable to deformation, the overall structure is ductile, used for slope protection, bank protection and beach protection

2. Good water permeability: It can drain and consolidate, which is beneficial to the stability of the hillside and the conservation of soil and water.

3. Corrosion resistance: The low-carbon steel wire with anti-corrosion treatment on the surface is durable, and the surface is covered with a PVC/PE protective layer, which can be used for ocean beaches and rivers with large changes in water quality.

4. Convenient assembly and construction: no water, cement, formwork and electricity, easy to install, can be tied and assembled into various shapes according to the design, coherent as a whole.

5. The speed is fast, which is conducive to rushing the construction period: multiple groups can be constructed at the same time, parallel and streamlined.

6. Economical and applicable: The local stone resources can be used according to local conditions.

The advantages of Galvan Gabion:

1. The weldability of Galvan gabion mesh is better than that of galvanized steel wire.

2. The ductility and deformability of the Galvan gabion mesh are extremely strong, even beyond the steel base it protects. It can withstand the test of winding and bending under strong deformation process conditions without worrying about cracking and falling off of the coating.

3. It has high corrosion resistance, and the corrosion resistance of its products is about 2-3 times that of ordinary galvanized. No matter in harsh environments such as outdoor, humid environment, or marine climate, the corrosion resistance of the alloy-coated steel wire is superior to that of ordinary galvanized and electro-galvanized steel.

4. The zinc-aluminum structure of the Galvan gabion mesh provides an excellent uniform phase surface. Compared with other coatings, its alloy coating is essentially an excellent pretreatment substrate and coating adhesive. This excellent Its properties improve post-application cracking, corrosion and blistering.

Uses of Galvan Gabion mesh: widely used in water conservancy projects, road and railway subgrade slope protection, ecological revetment protection, ecological slope management, coastal defense engineering, disaster protection and management, large-scale slope support engineering, ecological river construction, Municipal Garden.

PRODUCT SERVICE

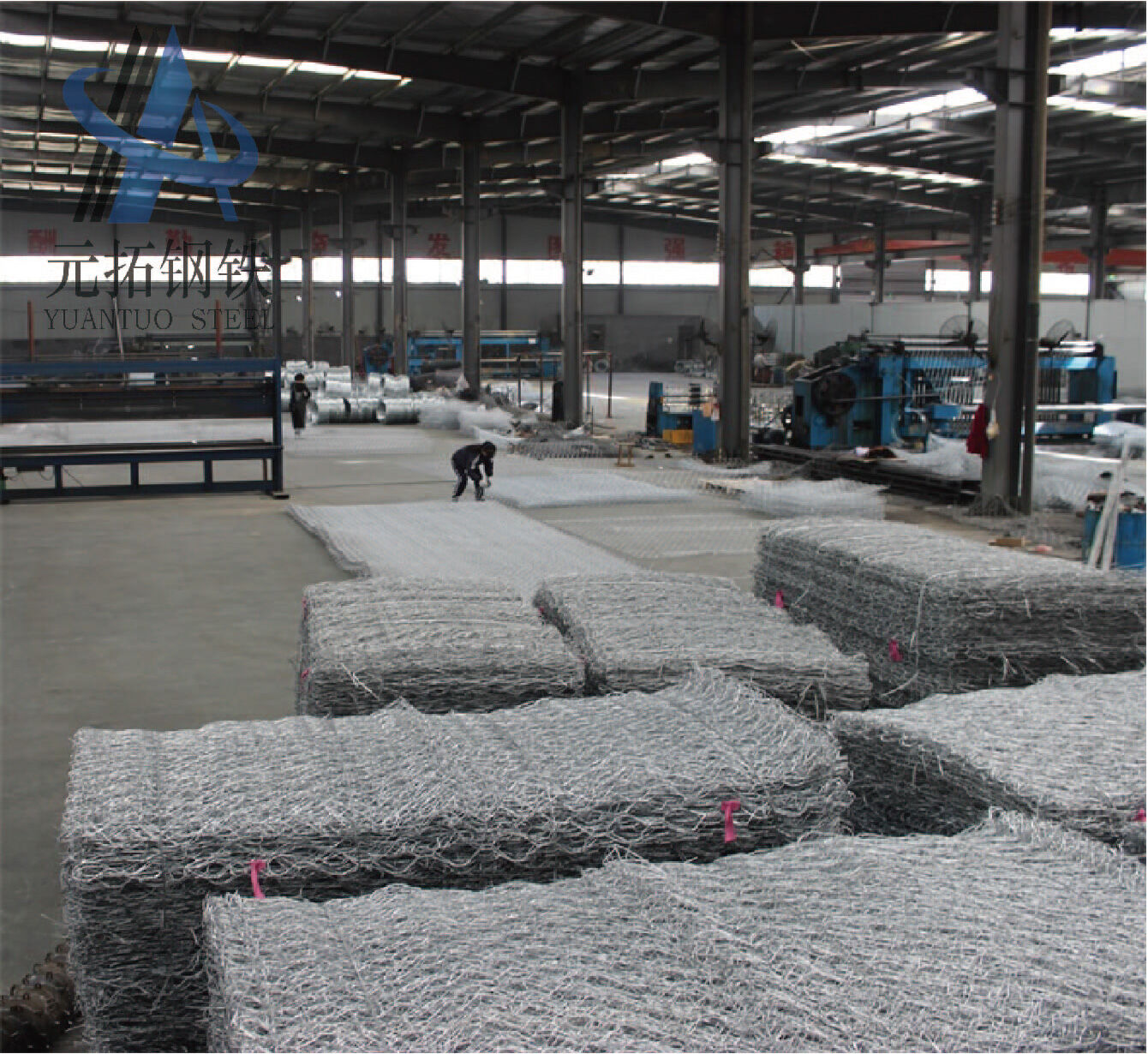

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
