PRODUCT DESCRIPTION

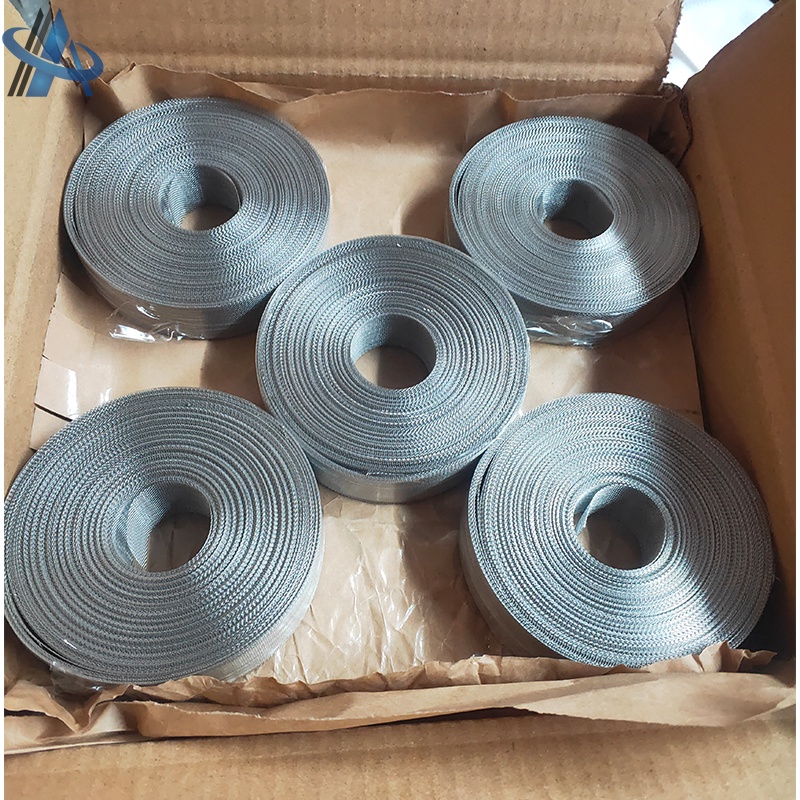

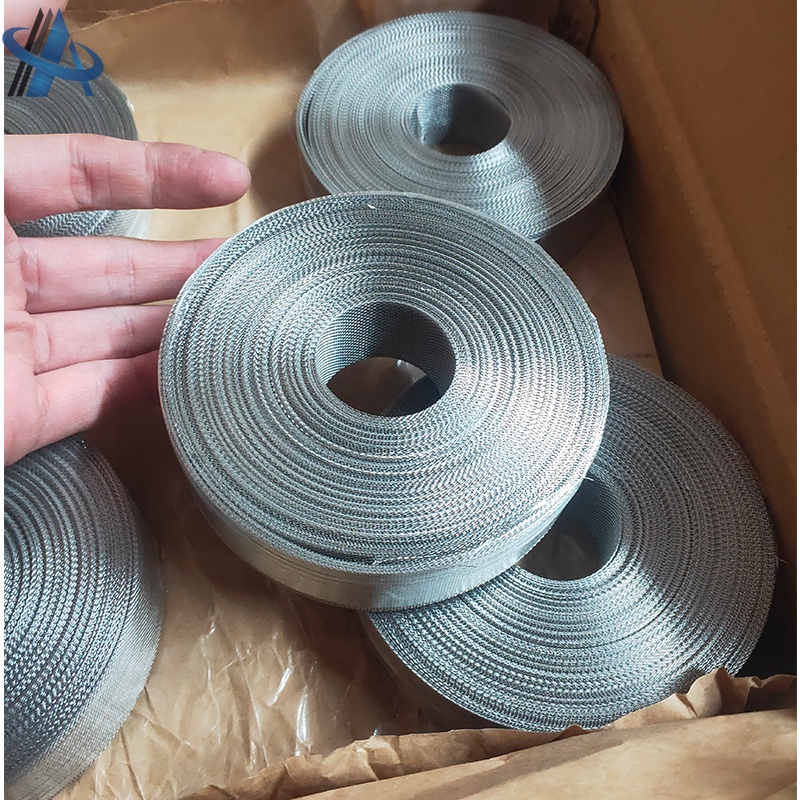

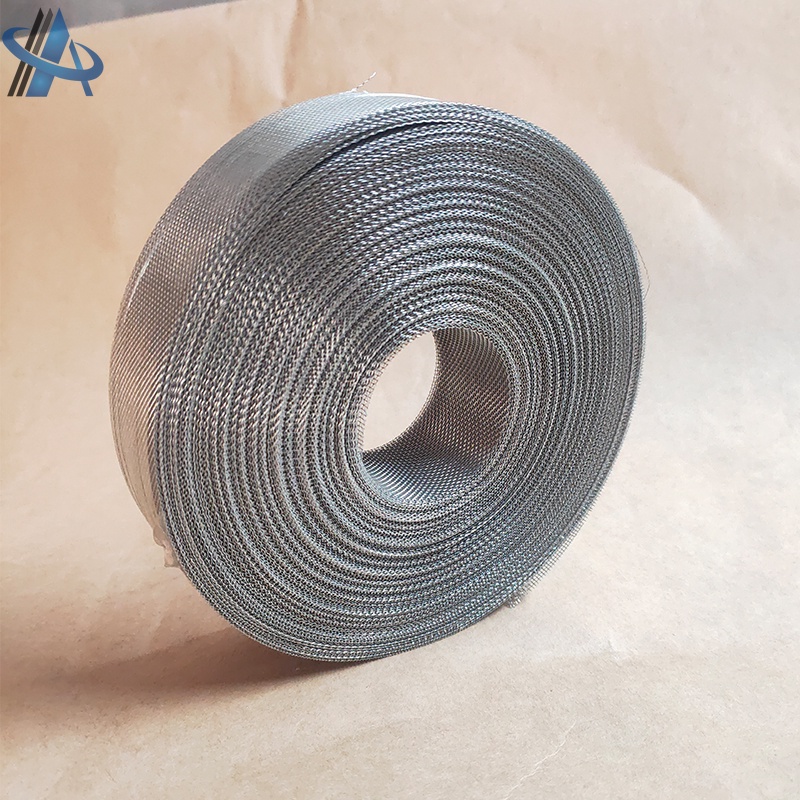

Nickel-chromium alloy wire mesh product name: nickel-chromium alloy mesh, nickel-chromium alloy filter screen, nickel-chromium alloy screen, nickel-chromium alloy mesh belt, high temperature alloy wire mesh.

Material: Nickel-chromium alloy

Specifications: 20 mesh - 200 mesh

Grade: CR20NI80

Features: Excellent elongation, compressive strength, surface finish, oxidation resistance, sulfur resistance, penetration resistance and other functions. The number of repeated bending is large, the resistance and temperature coefficient are stable, the allowable surface load is high, the specific gravity is light and the price is economical and reasonable.

Uses: It is widely used in aerospace, shipbuilding, military industry, chemical machinery, electricity, seawater desalination, medical equipment and other fields. It has an important position and role in the development of the national economy.

Introduction of nickel-chromium alloy mesh

The development and weaving of iron-chromium-aluminum mesh and nickel-chromium mesh, features: high temperature resistance of 950 degrees -1250 degrees, not easy to quench and break, not easy to rust, and relatively low cost.

Nickel-chromium alloy wire mesh material division: 0CR20NI80, 0CR25NI20 temperature resistance 1250 degrees

Features: Nickel-chromium high resistance electric heating alloy Material: cr20ni80, cr15ni60, Cr20Ni35

Material: Iron-chromium-aluminum high resistance electric heating alloy Material: 0cr25al5, 0cr21a16nb, 0cr27al7mo2, HRE Electric furnace wire is a common heating element for various muffle furnaces, tube furnaces, kilns, etc.

Note: According to the wire diameter, pipe diameter, material, temperature, resistance, shape, operating temperature and drawings as required by the user. Characteristics of electric heating alloy components 1.

The characteristics of iron-chromium-aluminum electric furnace wire are:

①High operating temperature, such as 0Cr27Al7Mo2 and HRE, the maximum operating temperature in the atmosphere can reach 1400 °C; the melting point can reach 1520 °C, and the technical indicators can be comparable to imported electrothermal alloys.

② long service life;

③ The allowable surface load is large;

④Good anti-oxidation performance, the AI2O3 film formed after oxidation has good chemical resistance and high resistivity;

⑤ The specific gravity is less than that of nickel-chromium alloy;

⑥High resistivity;

⑦Good sulfur resistance;

⑧ The price is lower than the nickel-chromium alloy;

⑨ The disadvantage is that as the temperature increases, it exhibits plasticity, and the strength at high temperature is low.

two. The characteristics of nickel-chromium electric furnace wire are:

①High strength at high temperature;

②The material will not become brittle after cooling down after long-term use;

③ The emissivity of the fully oxidized nickel-inscribed alloy is higher than that of the iron-chromium-aluminum alloy;

④ non-magnetic or weak magnetic;

⑤In addition to sulfur atmosphere, it has better corrosion resistance.

PRODUCT SERVICE

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
