PRODUCT DESCRIPTION

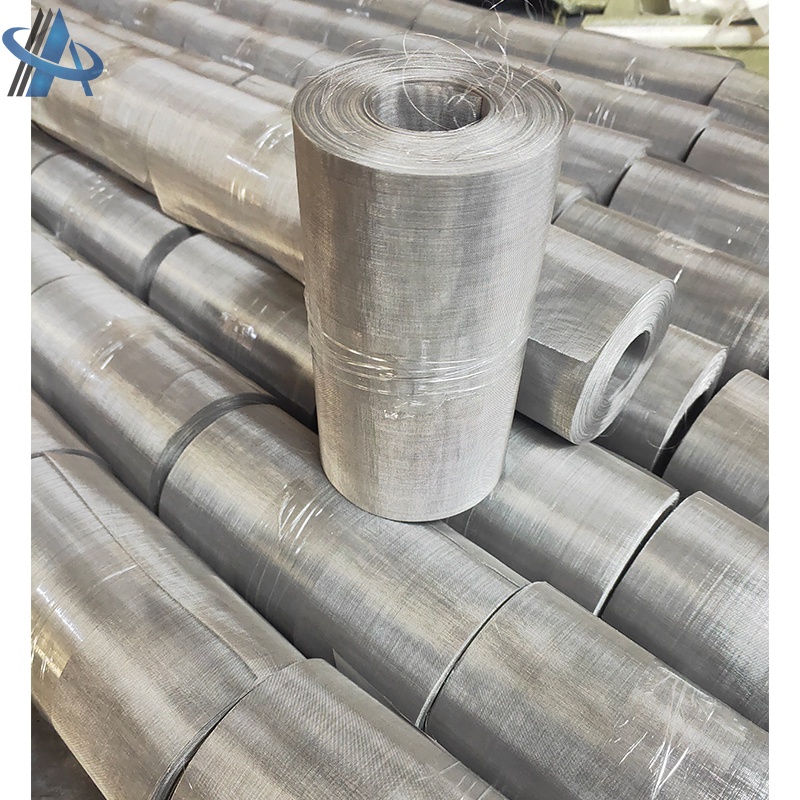

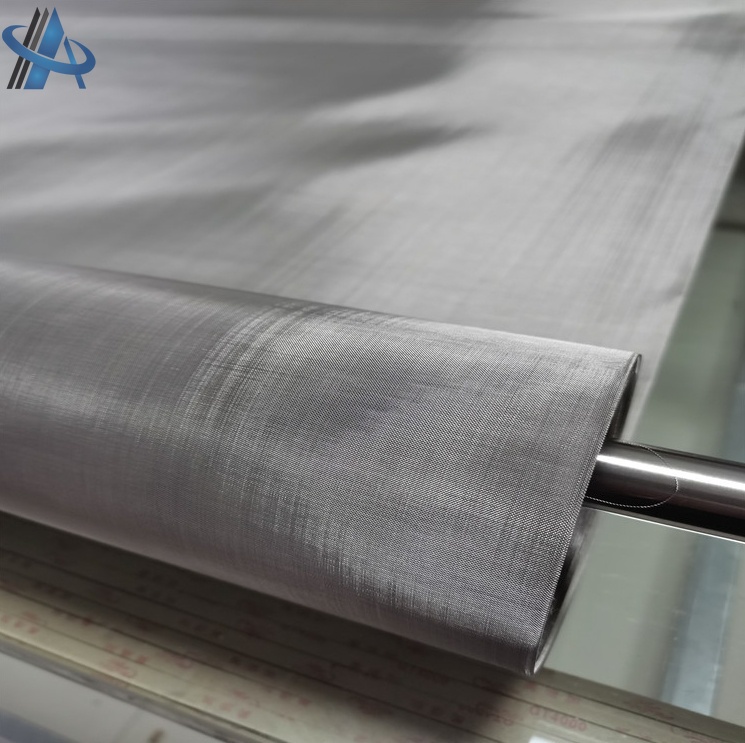

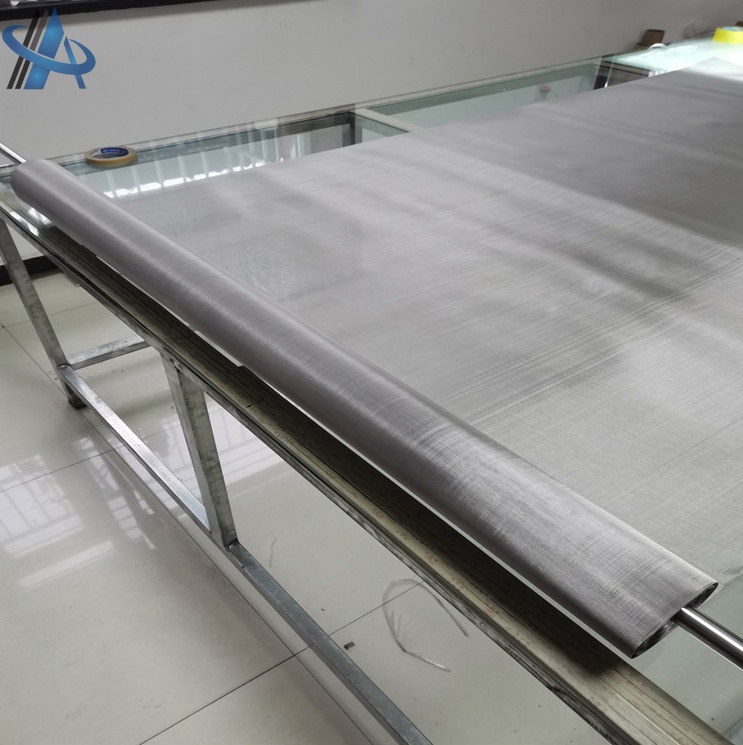

Inconel wire mesh is also known as inconel high temperature wire mesh, inconel screen, inconel filter, inconel woven mesh, inconel square mesh.

Inconel wire mesh grades: inconel600, inconel601, inconel625, inconel718, inconelX750, etc.

Uniform corrosion of inconel products can occur in acidic or hot alkaline solutions. Losses can be expected through this mechanism and are allowed by design. The corrosion rate of inconel products is very slow when the metal is in a passive state, generally corrosion resistance is better with larger chromium content, but other solutes can be detrimental.

The high nickel content of inconel600 makes the alloy have very strong resistance to chloride stress fission corrosion, and can maintain its high corrosion resistance in the reduced state and also has strong corrosion resistance in alkaline solution. At the same time, due to the chromium content, the corrosion resistance is better than pure nickel in an oxidizing environment.

Main components: 77Ni-16Cr-6Fe

Application areas of inconel600:

● Thermowells in aggressive atmospheres

●Vinyl chloride monomer production: resistance to chlorine, hydrogen chloride, oxidation and carbonization corrosion

Oxidative conversion of uranium to hexafluoride: resistant to hydrogen fluoride corrosion

Fields of production and use of corrosive alkali metals, especially environments where sulfides are used

●Preparation of titanium dioxide by chlorine method

●Production of organic or inorganic chlorides and fluorides: resistant to chlorine and fluorine corrosion

●Nuclear reactor

Retorts and components in heat treatment furnaces, especially in carbonizing and nitriding atmospheres

●Alloy 600H is recommended for catalytic regenerators in petrochemical production in applications above 700°C for longer service life.

The high nickel content of INCONEL 600 makes the alloy very resistant to chloride stress fission corrosion, and can maintain its high corrosion resistance in the reduced state and also has strong corrosion resistance in alkaline solutions. At the same time, due to the chromium content, the corrosion resistance is better than pure nickel in an oxidizing environment.

Main features: good high temperature corrosion resistance and oxidation resistance, excellent cold and hot processing and welding process performance, satisfactory thermal strength and high plasticity below 700°C.

Application examples: Aero-engine parts, production and use of corrosive alkali metals, especially in environments where sulfides are used.

Inconel601 wire mesh material is an alloy material. Excellent oxidation resistance at high temperature, good carbonization resistance, good oxidation resistance in sulfur-containing atmosphere, good mechanical properties at both room temperature and high temperature Good stress corrosion cracking resistance due to controlled Carbon content and grain size, 601 has higher creep rupture strength, so it is recommended to use 601 in the field above 500 ℃.

Inconel601 wire mesh features:

1. Excellent oxidation resistance at high temperature

2. Good carbonization resistance

3. Good oxidation resistance in sulfur-containing atmosphere

4. Good mechanical properties at both room temperature and high temperature

5. Good resistance to stress corrosion cracking. Due to the control of carbon content and grain size, 601 has high creep rupture strength, so 601 is recommended in the field above 500 °C.

Metallographic structure of Inconel 601:

601 is a face-centered cubic lattice structure.

Corrosion resistance of Inconel 601:

An important property of alloy 601 is its resistance to oxidation at temperatures up to 1180°C. Even under severe conditions, such as during heating and cooling cycles, 601 produces a dense oxide film for high spalling resistance. 601 has very good carbonization resistance. Due to its high chromium and aluminum content, 601 has good oxidation resistance in high temperature sulfur-containing atmospheres.

Inconel601 Screen Application:

1. Trays, baskets and fixtures for heat treatment factories.

2. Steel wire split annealing and radiant tubes, high-speed gas burners, wire mesh belts in industrial furnaces.

3. Isolation tanks in ammonia reforming and catalytic support grids in nitric acid production.

4. Exhaust system components

5. Combustion chamber of solid waste incinerator

6. Duct Support and Soot Handling Components

7. Exhaust gas detoxification system components

8. Oxygen reheater

Inconel625 wire mesh material alloy is a solid solution strengthened nickel-based deformed superalloy with molybdenum and niobium as the main strengthening elements. It has excellent corrosion resistance and oxidation resistance, and has good tensile properties and fatigue properties from low temperature to 980 ℃. , and resistant to stress corrosion in a salt spray atmosphere. Therefore, it can be widely used in the manufacture of aero-engine parts, aerospace structural parts and chemical equipment.

Application field: The low-carbon alloy 625 after softening annealing is widely used in chemical process industry, and its better corrosion resistance and high strength make it can be used as a thinner structural part. Alloy 625 can be used in applications exposed to seawater and subject to high mechanical stress. Typical application areas:

  1. Components of organic chemical processes containing chlorides, especially where acidic chloride catalysts are used

  2. Digesters and bleaching tanks for the pulp and paper industry

  3. Absorber tower, reheater, flue gas inlet baffle, fan (humid), agitator, deflector and flue in flue gas desulfurization system

  4. For the manufacture of equipment and components for use in sour gas environments

  5. Acetic acid and acetic anhydride reaction generator

  6. Sulfuric acid condenser

Inconel718 alloy is a precipitation hardening nickel-chromium-iron alloy containing niobium and molybdenum. It has high strength, good toughness and corrosion resistance in high and low temperature environments below 650 °C. The delivery state can be solution treated or precipitation hardened.

Similar grades: GH4169, GH169 (China), NC19FeNb (France), NiCr19Fe19Nb5, Mo3 (Germany), NA 51 (UK) Inconel718, UNS NO7718 (US) NiCr19Nb5Mo3 (ISO).

Has the following characteristics:

●Ease of processing

●High tensile strength, fatigue strength, creep strength and rupture strength at 700℃

●High oxidation resistance at 1000℃

●Stable chemical properties at low temperature

●Good welding performance

Application field: Due to its high temperature strength, excellent corrosion resistance and easy processability at 700 °C, it can be widely used in various high-demand occasions.

●Steam turbine

●Liquid fuel rocket

●Cryogenic engineering

●Acid environment
