Product Details

PRODUCT DESCRIPTION

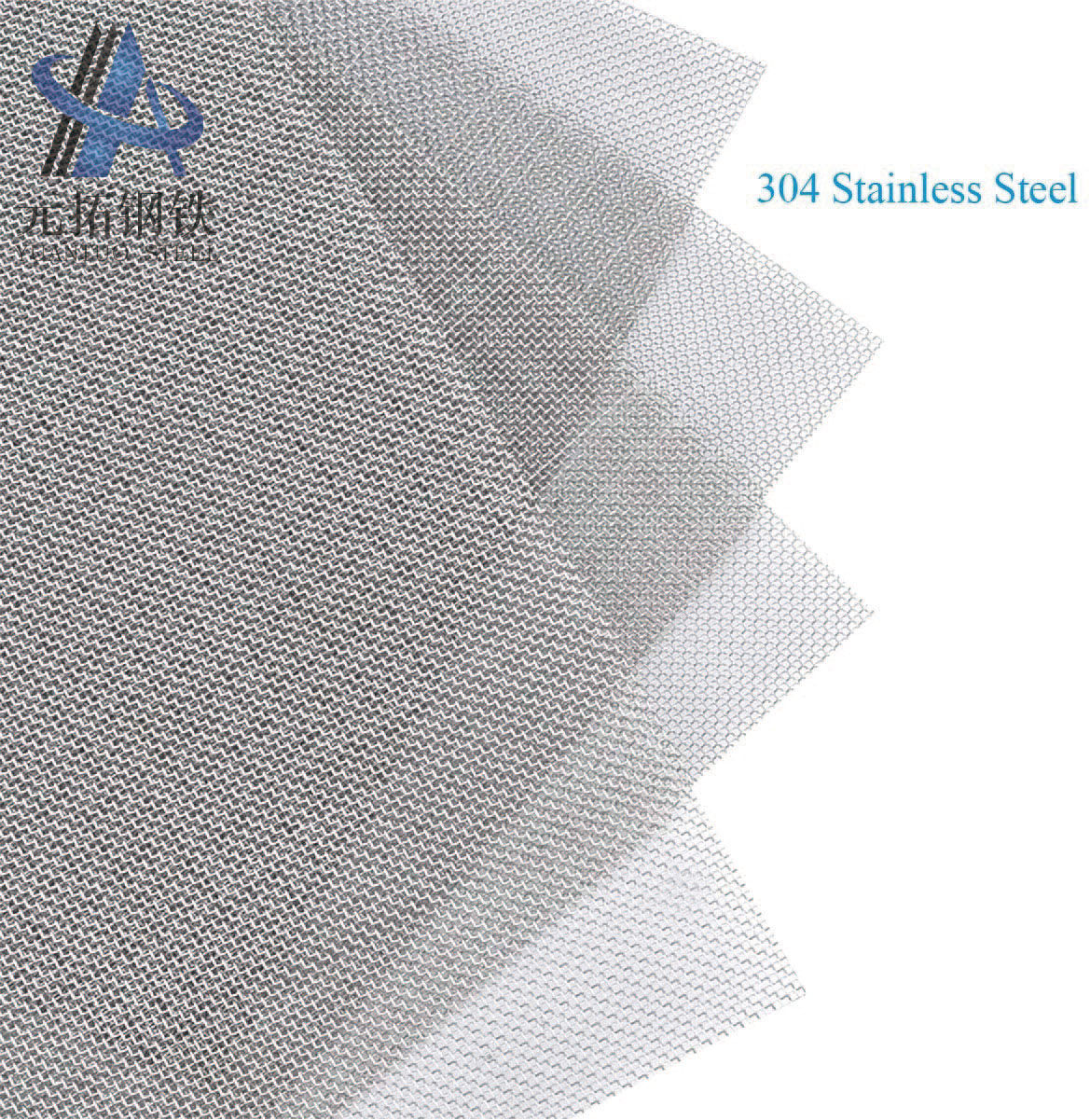

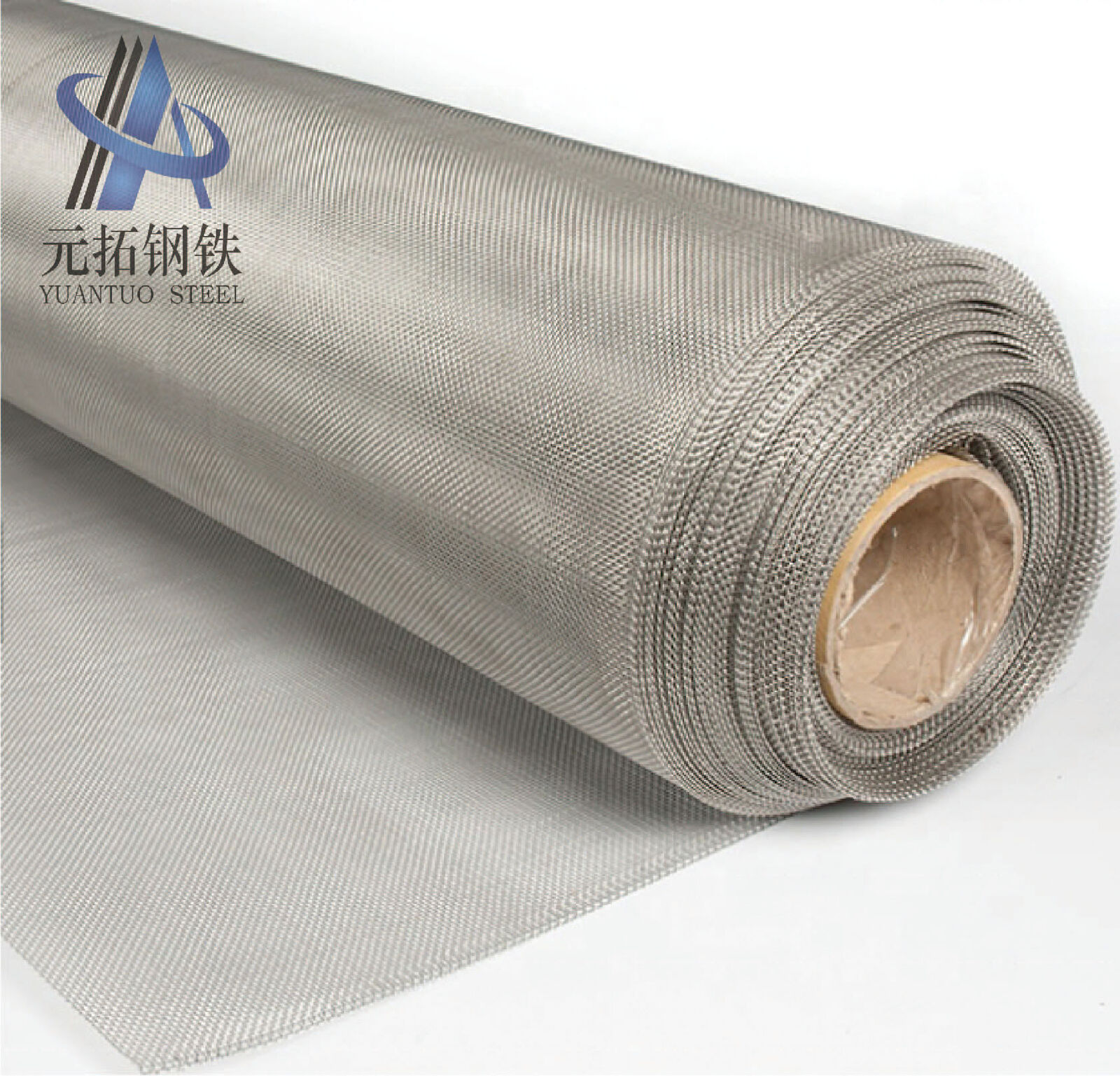

Stainless steel square mesh is also known as stainless steel woven mesh, square hole mesh, stainless steel wire mesh, stainless steel filter mesh.

Stainless steel square mesh is classified by weaving: 1, plain weave 2, twill weave 3, plain Dutch weave 4, twill Dutch weave

Stainless steel square mesh weaving method: divided into plain weave. Twill weave, stainless steel wire mesh specifications 20 mesh - 630 mesh.   

Material: SUS304, SUS316, SUS316L, SUS302, etc.   

Uses: used for screening and filtration in acid and alkaline environments, as mud mesh in petroleum industry, as screen filter in chemical fiber industry, and as pickling mesh in electroplating industry.


Stainless Steel Grid Specification Reference Information
Mesh (inch)Wire Diameter (mm)Hole (mm)Material (AISI)
2x21.810.9304 or316
3x31.56.96304 or316
4x415.35304 or316
7x712.63304 or316
10x100.61.94304 or316
12x120.51.62304 or316
16x160.41.19304 or316
16x160.351.24304 or316
18x180.351.06304 or316
20x200.40.87304 or316
24x240.260.8304 or316
30x300.30.55304 or316
35x350.170.56304 or316
40x400.230.4304 or316
50x500.20.31304 or316
60x600.150.27304 or316
70x700.120.24304 or316
80x800.130.19304 or316
90x900.120.16304 or316
100x1000.10.15304 or316
120x1200.090.12304 or316
150x1500.0630.11304 or316
180x1800.0530.09304 or316
200x2000.0530.07304 or316
250x2500.040.063316
300x3000.040.044316
325x3250.0350.043316L
350x3500.030.042316L
400x4000.030.033316L
450x4500.0280.028316L
500x5000.0250.026316L


PRODUCT SERVICE




FACTORY TOUR




Q&A


Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
