PRODUCT DESCRIPTION

Types of slope protection nets: mountain slope protection nets, highway slope protection nets, SNS slope protection nets, flexible protection nets, SNS active protection nets, rockfall protection nets, scenic slope protection nets, protection nets, cable guardrails, mountain protection nets , active protection net, etc.

Classification: active protection and passive protection. The use of slope protection nets in highway and railway landslides.

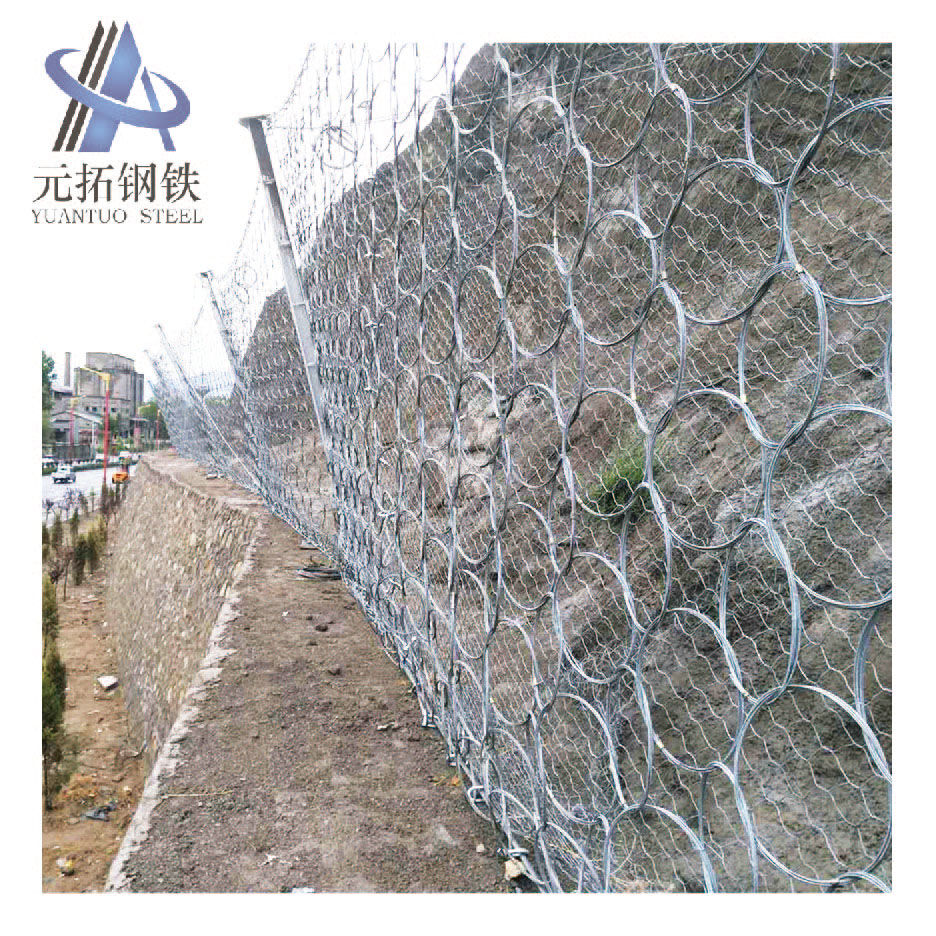

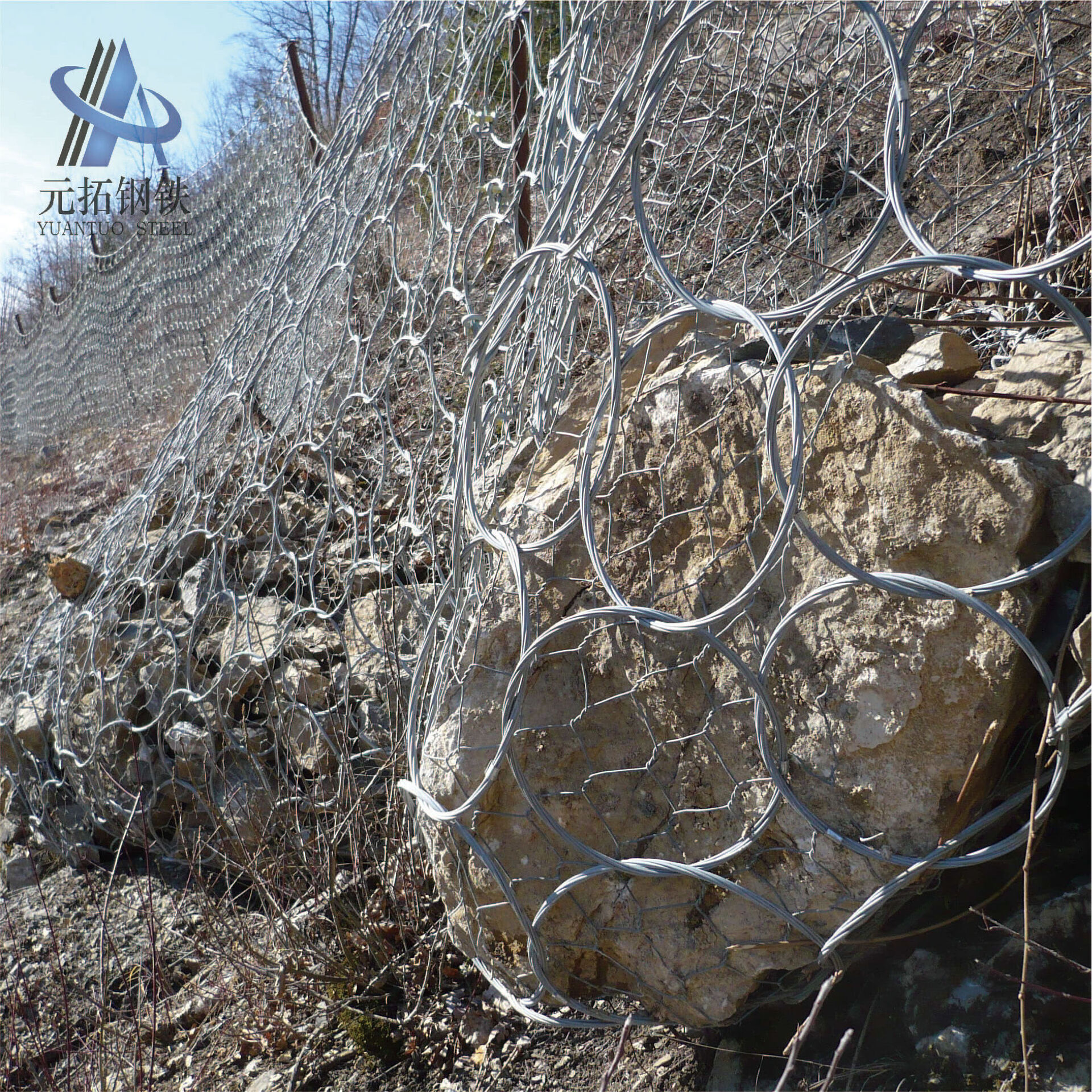

The slope protection net is an active protection active protection system. Various types of flexible nets mainly composed of wire rope nets are covered and wrapped on the required protective slopes or rocks to limit the weathering, peeling or damage of the rock and soil mass on the slope and prevent rock collapse (reinforcement). effect), or control the rockfall to move within a certain range (enclosure effect).

Slope protection net structure: the first two are fixed by wire rope anchors and/or support ropes, and the latter are fixed by steel bars (prestress can be applied) and/or steel wire rope bolts (used when there are edge support ropes), special anchor pads And if necessary, the edge support rope and other fixing methods.

Product features of slope protection net

It has high flexibility, high protective strength and easy spreadability. Adapt to any slope terrain, the installation procedure is standardized and systematic.

The system adopts die-cutting installation method, with short construction period and low construction cost.

The special manufacturing process of system materials and high anti-corrosion and anti-rust technology determine the ultra-high service life of the system. The system can minimize the impact of the engineering team on the environment, and its protective area can fully protect the stability of soil and rocks, facilitate artificial greening, and be beneficial to environmental protection.

The principle of action is similar to the surface layer slope protection system such as spray anchor and soil nail wall, but because of its flexible characteristics, the system can distribute the local concentrated load to the surrounding materials: steel wire rope net, ordinary steel wire grille (often called iron wire grille) and TECCO The high-strength steel wire grille is evenly transmitted to give full play to the protection capability of the entire system, that is, local loading, and overall action, so that the system can withstand larger loads and reduce the anchoring force requirements of a single bolt.

Product use of the slope protection net: the openness of the system, the groundwater can be freely discharged, avoiding the problem of slope instability caused by the increase of groundwater pressure; the system not only contributes to the stability of the slope, but also inhibits The slope is subject to further weathering and denudation, and there are no special requirements for the morphological characteristics of the slope, and the original landform and vegetation growth conditions of the slope will not be damaged or changed. The necessary conditions are preserved, green plants can grow freely in their open spaces, and the soil-fixing effect of plant roots is integrated with the slope protection system, thereby inhibiting slope damage and soil erosion, which in turn protects the landform and slope. Surface vegetation to achieve the best slope protection and environmental protection purposes.

PRODUCT SERVICE

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
