PRODUCT DESCRIPTION

Active protective net structure configuration: wire rope net, wire rope anchor rod, support rope, suture rope, steel wire mesh.

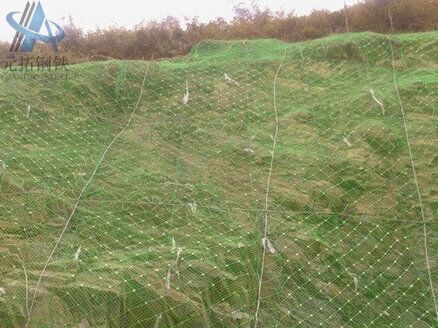

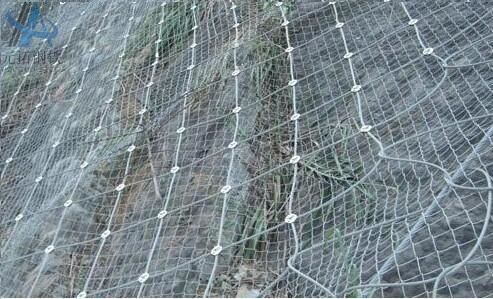

The active protection system is covered with various types of flexible nets mainly composed of wire rope nets and wrapped on the required protective slopes or rocks to limit the weathering, peeling or damage of the rock and soil mass on the slope and the collapse of dangerous rocks (reinforcement), or to control the rockfall. Movement within a certain range (enclosure effect). The principle of action is similar to the surface layer slope protection system such as spray anchor and soil nail wall, but because of its flexible characteristics, the system can distribute the local concentrated load to the surrounding materials: steel wire rope net, ordinary steel wire grille (often called iron wire grille) and TECCO The high-strength steel wire grid is evenly transmitted to give full play to the protection ability of the whole system, that is, local load, overall effect, so that the system can bear a large load and reduce the anchoring force requirements of a single bolt

Due to the openness of the system, groundwater can be drained freely, avoiding the problem of slope instability caused by the increase of groundwater pressure; this system not only contributes to stabilizing the slope, but also restrains the slope from further weathering and denudation. , and there are no special requirements for the morphological characteristics of the slope, and it does not damage or change the original landform and vegetation growth conditions of the slope. Plants can grow freely in their open spaces, and the soil-fixing effect of plant roots is integrated with the slope protection system, thereby inhibiting slope damage and soil erosion, which in turn protects the topography and slope vegetation to achieve optimal Slope protection and environmental protection purposes.

Simple type of active protective net: edge (or upper edge) steel rope anchor + support rope + suture rope (D0/08/300 steel rope net + upper and lower edge anchoring + upper and lower edge (or lateral) support rope) edge (or upper edge) Wire rope anchor + support rope + suture rope (D0/08/300 steel rope net + upper and lower edge anchoring + upper and lower edge (or lateral) support rope) <common model: system steel wire rope anchor + support rope + suture rope, hole concave Pit + tension [or edge (upper edge) anchoring (wire cable anchor 2-4m distance 4.5m) + vertical and horizontal support rope (2-∮16) + wire rope net (◇08/300/4*4㎡) + Suture rope (∮8)]

PRODUCT SERVICE

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
