PRODUCT DESCRIPTION

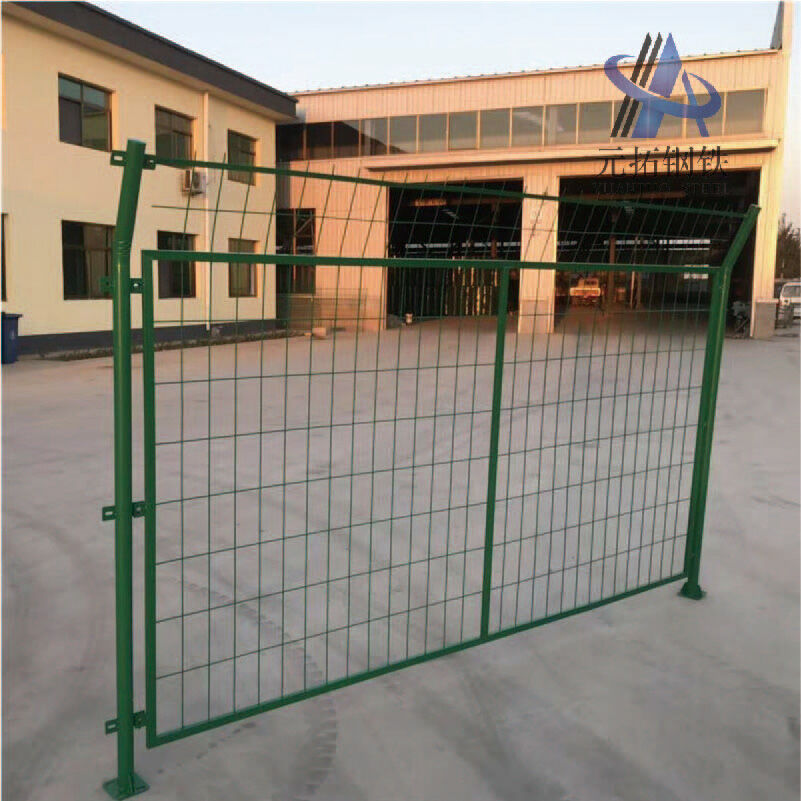

Frame fence, also known as frame type anti-climbing welded mesh, frame isolation fence, frame fence, frame protection net, frame fence, etc., is a very flexible product, widely used in China's roads, railways, high-speed Highways, etc.; it can be made into a permanent mesh wall or used as a temporary isolation mesh, which can be achieved by using different column fixing methods.

Frame fence specifications:

Mesh (mm): 75x150 80x160 60x120

Mesh (mm): 1800x3000, frame (mm): 20x30x1.5

After mesh plastic (mm): 4.0 4.5 5.0

Column size (mm): 48x2x2200

Overall bending: 30°

Bending length (mm): 300

Column spacing (mm): 3000

Pre-embedded column (mm): 250-300

Embedded foundation (mm): 500x300x300 or 400x400x400

Advantages of frame fence:

Beautiful, durable, non-deformable, and quick to install. It is an ideal metal mesh wall and has been widely used in various industries.

Strong anti-corrosion performance and low cost.

It mainly adopts P-type column and triangular flat iron as the outer frame side frame, and the inside is processed by more practical 6mm wire.

The main features are strong anti-corrosion performance and low cost. Frame Fence Mesh for School Fences:

It mainly adopts the anti-collision hook type net with strong safety.

The frame is mostly 60 cylinders, and the mesh surface is a diamond-shaped anti-scratch green mesh.

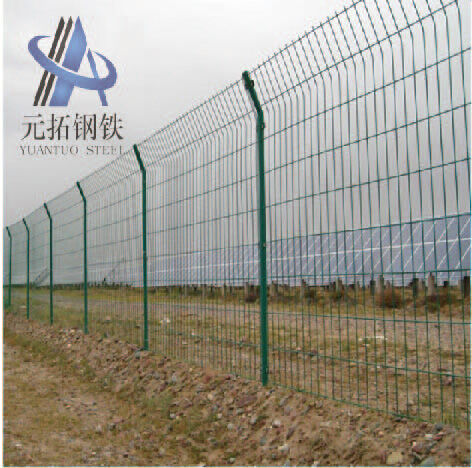

Frame fence for highway:

It is mainly made of ordinary 48 cylinders and square tubes with a frame of 20X30, which are connected by standard.

Main features: low cost, cheap installation.

As a kind of guardrail product with very flexible assembly, this product can be used as a permanent mesh wall or as a temporary isolation net, which can be realized by using different column fixing methods. The frame fence is made of high-quality wire rods as raw materials. It is a welded mesh that is protected by three layers of galvanized, front primer and high-adhesion powder spraying. It has long-term anti-corrosion and anti-ultraviolet characteristics. The surface treatment of this kind of fence is galvanized and sprayed, or one of them can be selected, and the top is covered with a plastic cover or a rain cap. According to different environments and installation methods, pre-embedded 50cm, plus base and other methods can be selected. Connect the mesh and column of the frame fence by screws and various special plastic or iron clips. All screws are automatically anti-theft. The accessories used can also be designed according to the specific requirements of customers.

The frame type guardrail has the characteristics of flexible assembly and wide range of uses, and can also be used as a highway guardrail. It mainly uses high-quality wire rods as raw materials, and has the characteristics of long-term anti-corrosion and anti-ultraviolet through galvanized and pvc-coated mesh. The thickness of the plastic wrap can reach more than 1.0mm. The mesh surface has strong impact resistance. There are generally two types of mesh edges: hooked edges and twisted edges. It is used in China's roads, railways, highways, etc.; it can be made into a permanent mesh wall or as a temporary isolation mesh, which can be realized by using different column fixing methods. After the production of the fence net, all parts must undergo rust removal, grinding, passivation, vulcanization and other processes, and then use plastic plating. The color is fruit green, and the thickness of the coating is 0.5 ~ 0.6mm. The best imported weather-resistant resin powder, the coating must have the same color, smooth surface, no sagging, dripping or excess agglomeration. The surface of the plated parts should be free of defects such as leakage plating and exposed iron.

PRODUCT SERVICE

FACTORY TOUR

Q&A

Q1: Can you send samples?

A: Of course, we can provide customers with free samples and express service around the world.

Q2: What product information do I need to provide?

A: Please provide the width, thickness, surface treatment requirements you need and the quantity you need to buy.

Q3: I am importing wire mesh for the first time, can you help me?

A: Of course, we have an agent to arrange the shipment, and we will do it with you.

Q4: What are the shipping ports?

A: In general, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports as needed.

Q5: How about the product price information?

A: The price changes according to the periodic price changes of raw materials, we will give you the best price.

Q6: What are your payment terms?

A: Payment<=1000USD, 100% prepayment. Payment >= USD 1000, 30% T/T in advance, balance before shipment or according to copy of bill of lading or letter of credit at sight.

Q7. Do you provide customized product services?

A: Yes, if you have your own design, we can produce according to your specifications and drawings.

Q8: What certifications do your products have?

A: We have ISO 9001, MTC, third party inspection, such as SGS, BV, etc.
